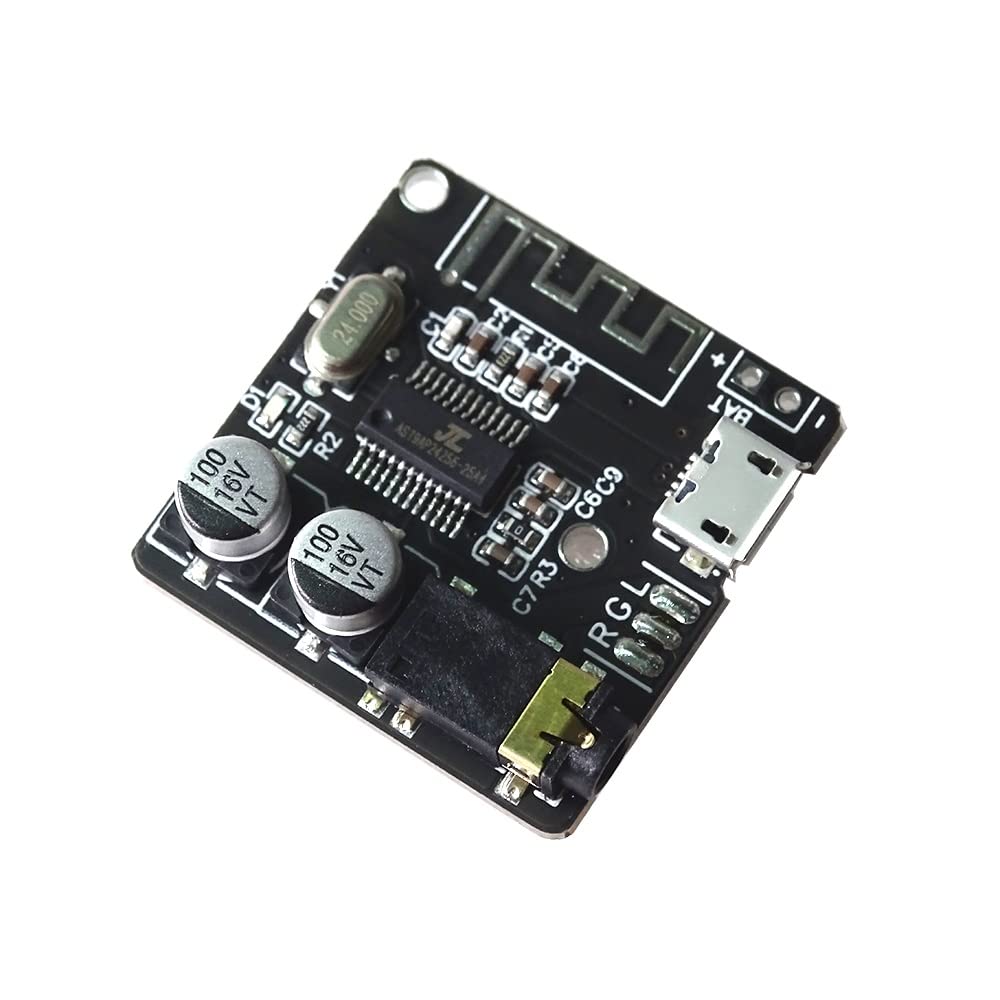

XWWDP Bluetooth Audio Receiver Board - Bluetooth 4.1/5.0 MP3 Lossless Decoder Module for Wireless Stereo Music Streaming | Home Audio, Car Stereo & DIY Projects (Color: Blue)

Product Description

1.Parameter characteristicsPower Supply 3.7-5VSNR 90dBTHD+N -70dBCrosstalk -86dBDNR 91dBSupport Profile A2DP/AVCTP/AVDTP/AVRCP/HFPLOS >15m2.Interface detailsUSB powered Universal Micro USB 5V power supply3.7-5V Supply Pad External 3.7-5V lithium battery power conversionLED indicator Bluetooth mode long blue light3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devicesInstructions:After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English The bluetooth device is ready to pair is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the XY_BT searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. As shown below
